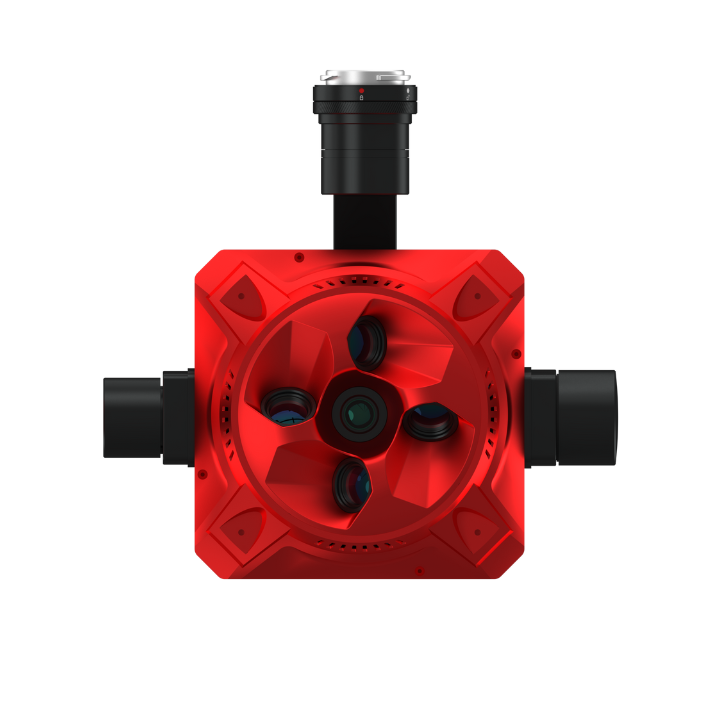

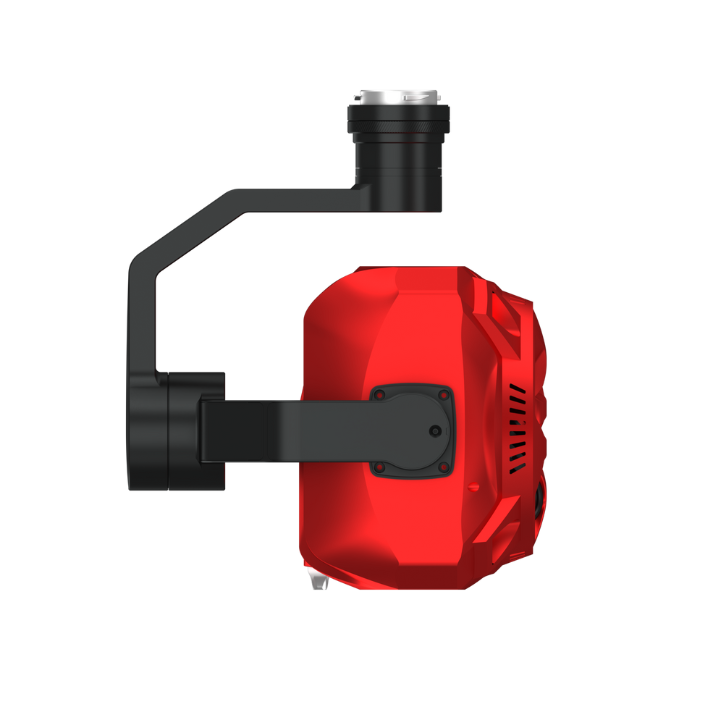

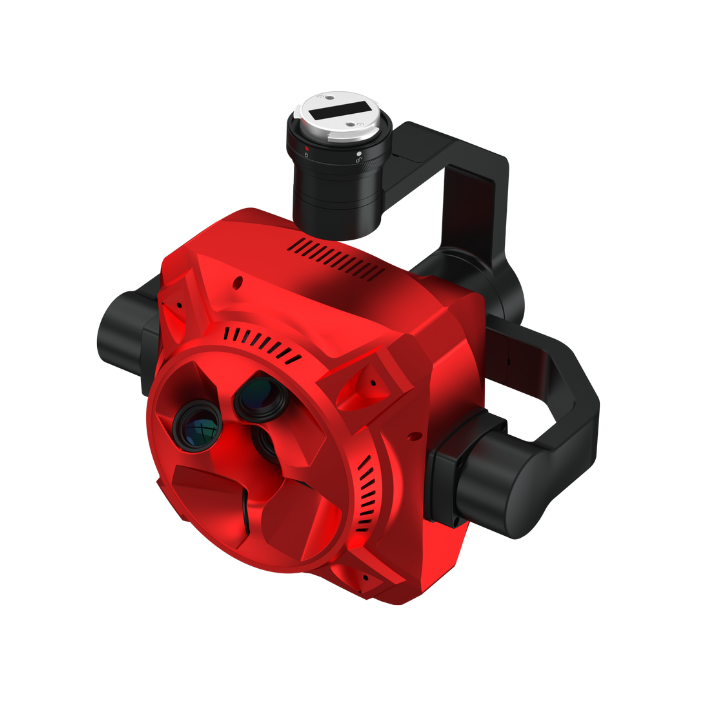

Share UAV 203S PRO
Share UAV 203S Pro
225 MP Full-Frame 5 Lens Oblique Aerial Camera
The Share 203S Pro is an upgraded version of the PSDK 102S V3. Its more detailed camera can capture more pixels and zoom in even further with its larger lenses.
Like its predecessor, the Share 203S Pro has five lenses that simultaneously capture data from every angle, providing operators with incredibly detailed and accurate data. This is also a huge time saver for surveyors, as instead of requiring multiple flights to get different angles, they can gather all angles in one seamless mission.
Share 203S Pro can save surveyors and inspectors a lot of time and resources. A mission with this payload can save them up to 2/3 of the time a standard payload would take.
The camera quality has almost doubled, going from over 25 million pixels in a single lens to the Share 203S Pro having 45 million pixels per lens and 225 million pixels in total with the other four lenses. This allows operators to gather even more stunning detail and produce models with information such as writing on signs and the texture of buildings.
In addition to requiring fewer flights to acquire detailed footage, the Share 203S Pro is easy to attach and set up with your drone of choice. When planning your mission, select it as a custom camera and consult your manual to determine which parameters you should set.
Key Features
- Enhanced Efficiency: Share 203S Pro's five lenses boost efficiency by allowing operators to capture multiple angles in a single flight, eliminating the need for multiple flights and taking a third of the time a regular payload would.
- Fly Higher: This payload has an incredible flight height of 272 m at the required 3 cm resolution for urban 3D projects, meaning you can fly safely and accurately. And fly even higher with fixed-wing drones at 5 cm resolution and 454 m.
- Smart 3-Axis Stabilised Gimbal: Capture data clearly and unaffected by the drone's movement, with steady footage even at 15 m/s.
- Multi-Purpose Payload: Share 203S Pro features modes for various scenarios: Real 3D Modelling, Macro Photography, 2D Orthophotoquad, and Smart City Modelling.
- Plentiful Storage: Safely store up to 1280G worth of data.
-
Clear Live-View Transmission: Stream live camera footage with a switchable 5-view image to your remote controller.
- Switchable 5-View Transmission: Monitor each lens in action and automatically adjust the Bitstream based on the distance for the highest visual clarity.
Ease Of Use
The Share 203S Pro is an incredibly versatile payload that adapts to many different scenarios and is compatible with many drones, including DJI M300 and M350, fixed-wing drones and any payload-friendly drone that can support its weight.
- No Extra Set-Up: The Share 203S Pro is instantly recognised as a payload, so operators do not need to do any additional set-up and launch their missions much faster.
- Intelligent Flight Sortie: Each flight sortie data is stored independently, and photos are automatically arranged according to the sortie and perspective naming when collecting data, making data management easier without the need to rename files again.
- No Post-Processing Required: The camera has a built-in position pose offset algorithm, which accurately calculates the position pose for each view during operation and writes the photo in real-time without requiring post-processing.
- Use Any Mapping Software: Share UAV's data is compatible with any mapping software, such as DJI Terra, DJI Modify, Pix4D and Drone2Map. You can use whichever suits you best.
Advanced Oblique Camera
The Share 203S Pro features four oblique camera settings, enhancing its versatility and adaptability for various tasks, from construction surveying to urban mapping.
- Real 3D Modeling: Convert your images and videos into detailed 3D models comparable to the DJI Zenmuse P1 but faster.
- Macro photography: Magnify the subject to life-size or bigger in exceptional detail, making reading the letters on signs possible.
- 2D Orthophotoquad: In this mode, you can merge the images you capture with a map of the area, enhancing your accuracy and providing you with a better visual of the area.
-
Smart City Modelling: Create interactive 3D models of the surveying area you can manipulate and zoom in on to see as much detail as possible.
Multipurpose and Efficient Payload
Use the Share 203S Pro across various industries for your surveying and mapping operations.
- Maximised Battery Life with Lightweight Design: This lightweight construction extends flight times and boosts workload capacity, delivering peak performance without compromising power efficiency.
- Frequent Surveying: The PSDK 102S V3 is tailored for regular survey operators, like those at ports and construction sites, making it perfect for weekly mapping.
- Extend your fieldwork time: High sensitivity and low noise algorithms boost your daily operations by 3 hours. Adjust shutter speed, ISO, white balance, and colour mode to match your operating conditions, ensuring optimal performance seamlessly.
-
Multi-Use Camera: This versatile camera, with adjustable parameters and independent vertical lenses, combines SHARE's advanced optics for both 2D/3D image capture and macro-photogrammetry, offering a cost-effective solution.
Better Accuracy
- GCP-Free Precision: Share UAV's Time Sync 2.0 technology ensures microsecond synchronization between camera, gimbal, flight control, and RTK, eliminating the need for Ground Control Points (GCPs) while enhancing accuracy.
- Flight Route Editor: Use 3D models for visual flight route editing and preview simulated imaging results.
- Enhanced Real-Time Position Tracking: The Share 203S Pro's software empowers seamless data inscription onto photos, intelligent task management, and optimised copy speed, further augmented by real-time dynamic Bitstream image transmission to enhance user interactions.
- TimeSync 2.0: This algorithm is deeply incorporated to recognise micro-second-level time synchronisation of Flight Control, Single-View Camera, Gimbal, and RTK. Then, five cameras will simultaneously be triggered to instantly calculate the high-precision POS location and altitude information.
Contact Us
heliguy™'s in-house geospatial department offers comprehensive training and support for surveys and inspections, including data processing assistance.
Contact us to learn more about what Share UAV's latest Payload can do for your operations and how its unique five-lens camera can boost your accuracy and efficiency when conducting inspections.
